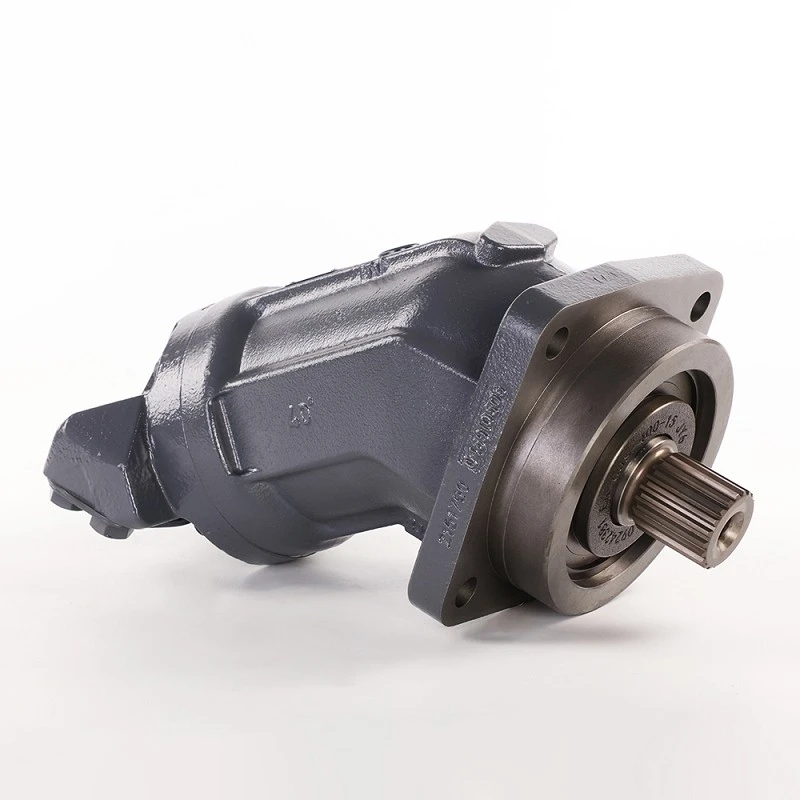

A2FO series yog lub twj tso kua mis nrog inclined ncej plunger qauv, 40 degree inclination lub kaum sab xis, kev hloov pauv tas li, lub zog siab ceev, me me thiab lub teeb yuag rau hydraulic kis tau tus mob hauv qhib thiab kaw circuits. Thaum siv los ua lub twj tso kua mis, tus nqi ntws yog proportional rau tus tsav ceev thiab txav chaw.
Khoom parameter
| Kev poob siab | 10-16ml/r | 23-32ml/r | 45ml / r | 56-63ml/r | 80-90ml/r | 107-125nl/r | 160-180ml/r | 200-250ml/r |
| Direotion ntawm kev sib hloov (ntawm qhov kawg ntawm tus ncej) | Txoj cai/Sab laug Bidirectiona | |||||||
| Maximu ceev | 3150 r / min | 2500r / min | 2240 r / min | 2000r / min | 1800 r / min | 1600 r / min | 1450 r / min | 1500r / min |
| qhov hnyav (KG) | 5.4 | 9.5 | 13.5 | 18 | 23 | 32 | 45 | 73 |
| Inlet siab | Dpen system: 0 8-3MPa kaw kaw lus: 2-6MPa |
|||||||
| Rated prassuro | 35 MPa | |||||||
| Max siab | 40 WP | |||||||
| Hom kev ua haujlwm | Qhib qhov system kaw qhov system |
|||||||
Khoom kom zoo dua
1. Lub inclined axis axial quantitative twj tso kua mis yog tsim rau static hydraulic tsav nyob rau hauv qhib circuits;
2. Haum rau kev taug kev machinery lossis kev lag luam;
3. Qhov tso zis ntws tus nqi yog proportional rau kev tsav tsheb ceev thiab txav chaw;
4. Kev tsim ntawm nws cov ncej tsav bearings tau ua tiav qhov kev pab cuam lub neej nyob rau hauv daim ntawv thov teb;
5. Ntau yam kev qhia tshwj xeeb tuaj yeem sib phim nrog txhua tus neeg tsav tsheb tiag tiag;
6. Txaus siab rau lub zog / qhov hnyav piv;
7. Compact thiab economic qauv;
8. Optimal volumetric efficiency; 9. Integrated plunger tsim nrog plunger nplhaib.
Hom khoom
Engineering thiab Siv Machinery - Engineering siv tshuab - Engineering machinery qhov chaw
Daim ntawv thov khoom
Haum rau kev taug kev machinery lossis industrial fields
Qhov zoo ntawm lub tuam txhab
PinXin Hydraulic yog ib lub chaw tsim khoom ntawm kev hloov precision qhov chaw, hydraulic twj tso kua mis, hydraulic lub cev muaj zog, hydraulic piston twj lossis motors hauv Suav teb. Thaum xaiv hloov hydraulic piston twj tso kua mis, koj yuav pom PinXin yog koj qhov kev xaiv zoo tshaj plaws nrog rau ntau yam xws li hauv qab no:
1. Qhov zoo tshaj plaws lav los ntawm PinXin.
I. Nrog ntau xyoo dhau los ntawm kev paub txog hydraulic qhov chaw tsim khoom, piston twj remanufacturing thiab kho, PinXin tau ua tiav hauv kev tsim cov khoom hydraulic hauv cov khoom zoo thiab tus nqi qis.
II. 70% ntawm peb cov neeg ua haujlwm yog cov kws tshaj lij thiab cov kws kho tsheb. PinXin ntseeg, tsuas yog cov neeg zoo heev tuaj yeem tsim cov khoom zoo.
III. PinXin tau ua tiav cov kab ua tiav nrog cov khoom siv ua haujlwm siab heev los ntawm cov khoom siv rau cov khoom tiav.
2. Kev daws teeb meem yooj yim logistic.
PinXin nyob hauv Hangzhou, uas yog kaw heev rau Ningbo thiab Shanghai chaw nres nkoj. Yog li peb tuaj yeem xa peb cov khoom rau koj tam sim ntawm tus nqi thauj khoom qis.
3. Cov nqe lus tsim nyog
Peb lub hom phiaj yog txhawm rau muab koj cov khoom zoo, xa tawm thaum koj xav tau thiab ntawm tus nqi pheej yig tshaj.
4. Kev Pabcuam sai
PinXin yog tswj los tsim kom tiav kev faib tawm network los muab kev pabcuam zoo tshaj plaws rau peb cov neeg siv khoom. Tag nrho koj cov lus thov thiab cov lus teb yuav raug kho sai thiab sai.
Ua tsaug rau koj tuaj saib peb lub vev xaib. Yog tias koj muaj lus thov lossis nug txog hydraulic twj tso kua mis spare qhov chaw lossis ua tiav cov twj lossis lub cev muaj zog, thov hu rau kuv thiab peb yuav teb koj sai sai.
Cim npe nrov: a2fo twj tso kua mis, Tuam Tshoj a2fo twj tso kua mis manufacturers, lwm tus neeg, Hoobkas
